Suportes de Parede
É acessório de

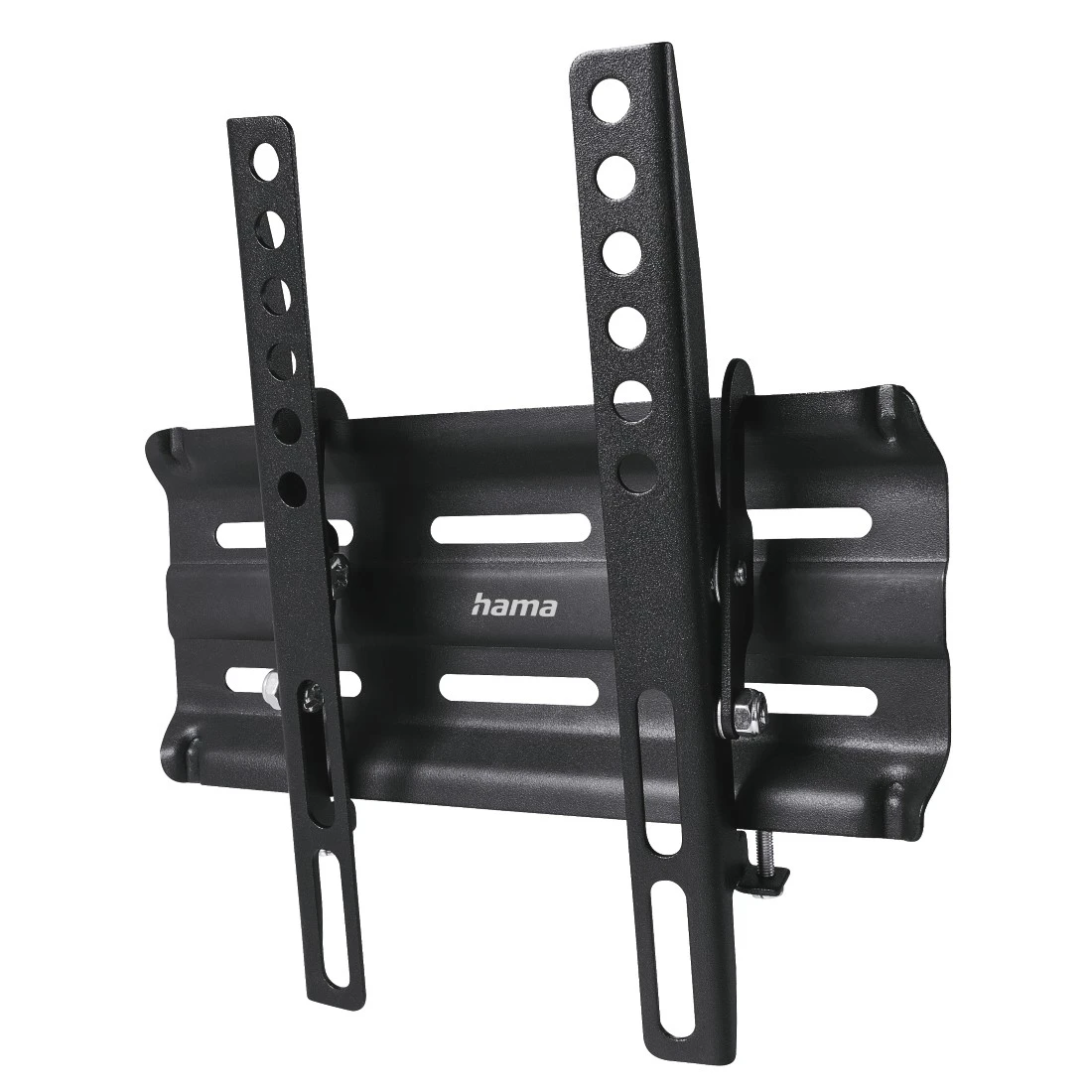

Hama TV-WB TIL 1-ST 200X200 BK
00118114
For the installation of flat panel TVs with a screen size from 48 cm to 122 cm (19" to 48")
25,90
EUR
Is suitable for
Qualidade de acordo com os padrões alemães
Da primeira amostra à produção em série: Os nossos produtos passam por controlos de qualidade rigorosos e abrangentes, geridos e implementados na Alemanha. Desta forma, garantimos o cumprimento de todas as especificações, diretivas e normas e satisfazemos as mais elevadas exigências.
Destaques
Sistema Easy Fix
Sempre posicionado de forma fácil e rápida: Com apenas um movimento, pode ajustar o televisor espontaneamente como pretender – sem qualquer ferramenta
Perfil extremamente fino
Perfil extremamente fino para uma decoração da casa moderna e economizadora de espaço
| Cor | Black |
| Variante | Black |
| Qualidade | 1 estrela |
| Carga Máx. | 33 kg |
| Hole Size Attachment | up to M6 |
| Tilt +/- | 0 / 10 ° |
| Material | Steel Plate |
| Maximum swivel range | 0 ° |
| Modelo | Televisão |
| Number of joints | 0 |
| Projection maximum | 2,9 cm |
| Projection minimum | 2,9 cm |
| Rotation | 0 ° |
| Special Feature | Spirit level |
| Altura Exterior | 22 cm |
| Dimensões do Monitor | 48 cm (19"), 50,8 cm (20"), 56 cm (22"), 58 cm (23"), 61 cm (24"), 66 cm (26"), 71 cm (28"), 74 cm (29"), 76 cm (30"), 81 cm (32"), 84 cm (33"), 86 cm (34"), 89 cm (35"), 91 cm (36"), 94 cm (37"), 97 cm (38"), 99 cm (39"), 103 cm (40"), 104 cm (41"), 108 cm (42"), 110 cm (43"), 112 cm (44"), 115 cm (45"), 118 cm (46"), 120 cm (47"), 122 cm (48") |
| Largura Exterior | 22 cm |
| Mounting Plate (Length) | 22 cm |
| Mounting Plate (Width) | 9,6 cm |
| VESA | 50 x 50, 75 x 100, 75 x 75, 100 x 100, 100 x 200, 200 x 100, 200 x 200 |
| VESA (from-to) | 50x50 - 200x200 |
| Apropriado para | Televisão |
| Recommended Maximum Screen Size | 122 cm (48") |
| Recommended Minimum Screen Size | 48 cm (19") |
| Tamanho de Ecrã Recomendado | 48 - 122 cm (19"-48") |
| Variante | Inclinable |
- For the installation of flat panel TVs with a screen size from 48 cm to 122 cm (19" to 48")
- Optimal positioning of the flat panel display in every room
- Supports all VESA standards up to 200 x 200

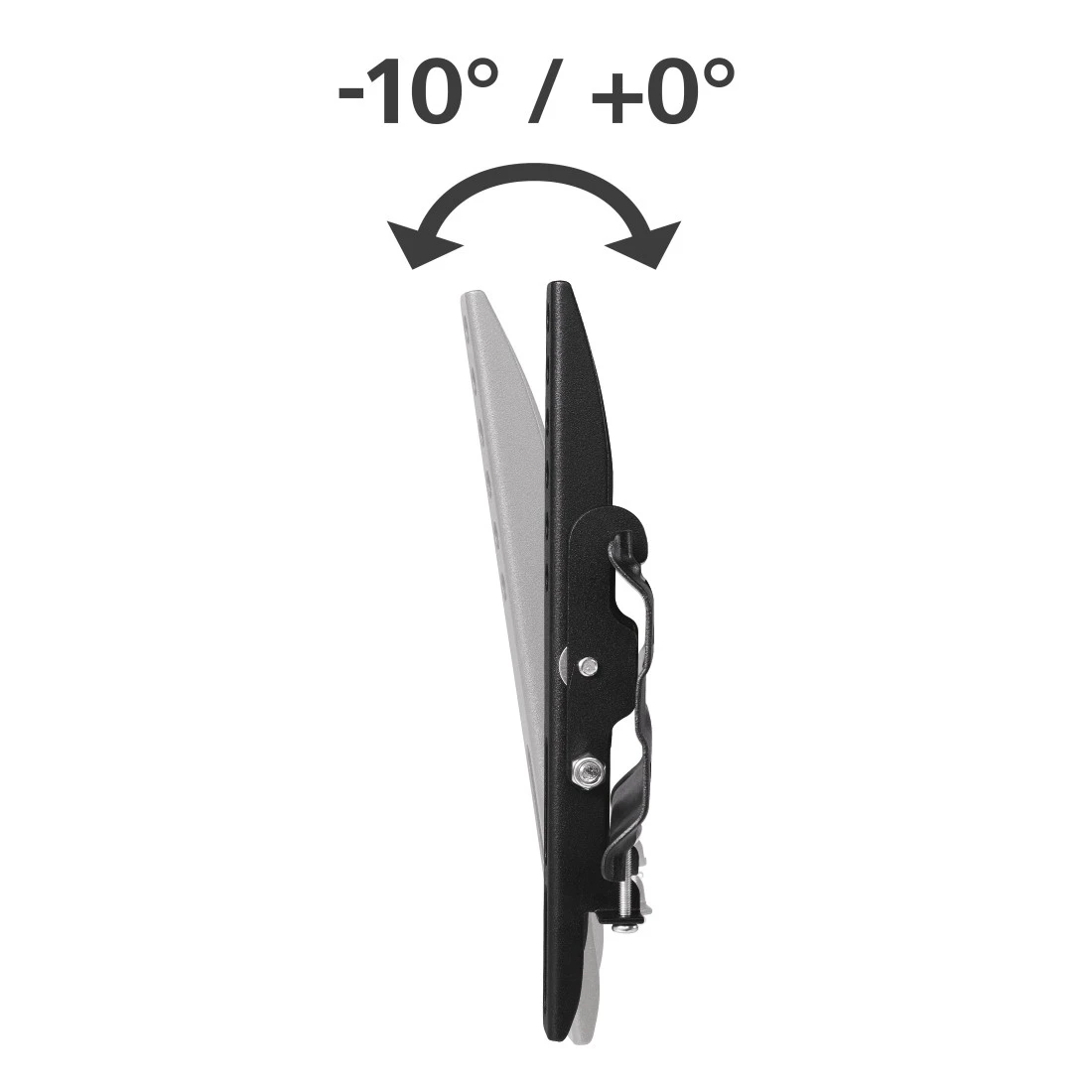

- Continuous -10° tilt
- 1 TILT TV wall bracket

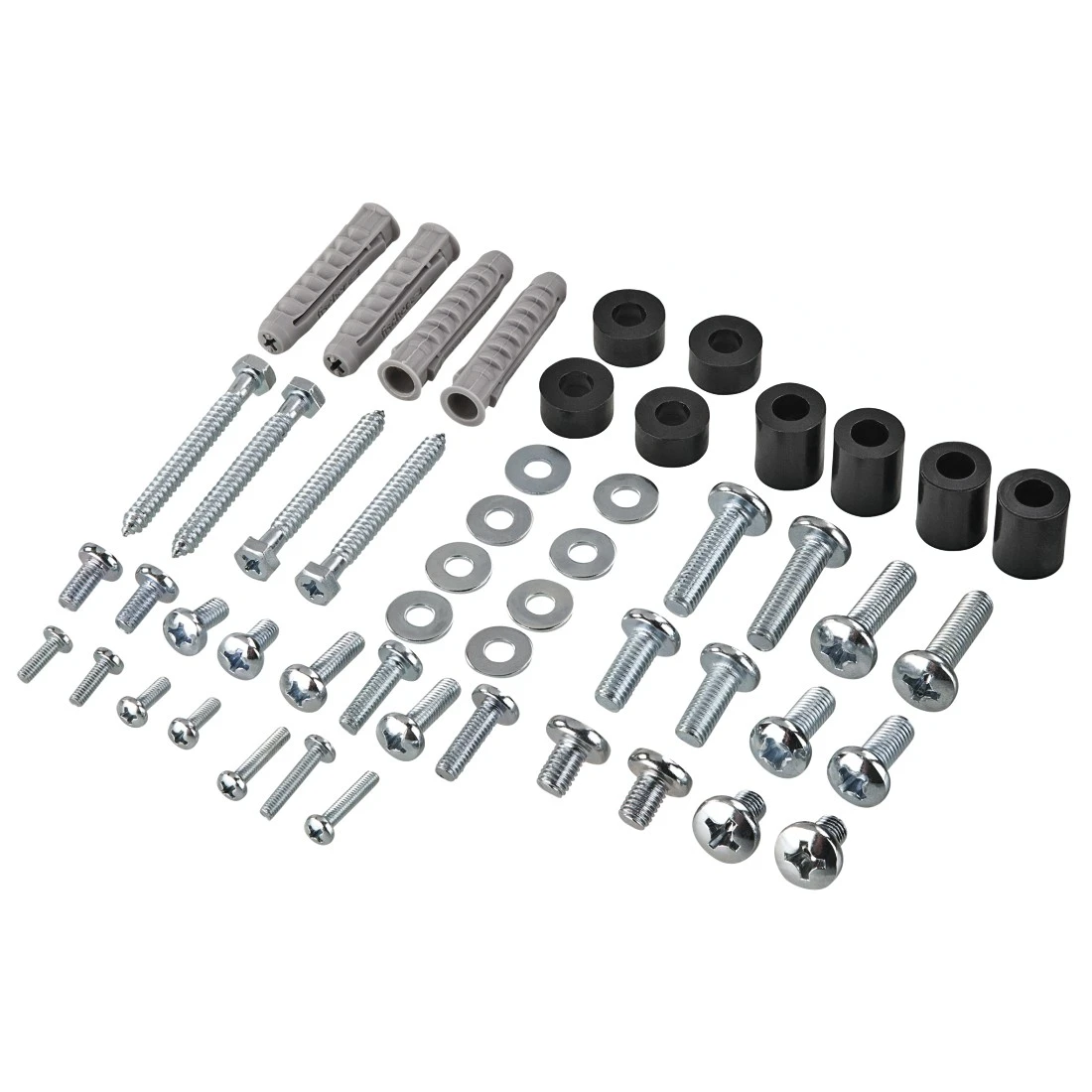

- Mounting hardware
- 1 spirit level
- 1 installation guide
If you want to install your TV set very close to the wall, this TV wall bracket is exactly the right bracket for your needs. If however you want more distance from the wall, simply use the spacer included.
In addition to the varied installation accessories supplied, we also recommend the following tools for the installation process: drill, pencil, screwdriver, power screwdriver, measuring tape, open-end spanner, spirit level.
Hama GmbH & Co KG provides the following manufacturer’s warranty on the workmanship and materials used for the product 00118114 TV-WB TIL 1-ST 200X200 BK: 3 Anos de Garantia
This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.
In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:
Hama GmbH & Co KG
Dresdner Str. 9
86653 Monheim
Germany
We would ask you to appreciate that Hama GmbH & Co KG may reject the
warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.
The warranty is valid only for non-commercial users of our product.
In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.
Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.
Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022
This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.
In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:
Hama GmbH & Co KG
Dresdner Str. 9
86653 Monheim
Germany
We would ask you to appreciate that Hama GmbH & Co KG may reject the
warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.
The warranty is valid only for non-commercial users of our product.
In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.
Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.
Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022
FAQs
The spirit level included is only intended as a rough guide. We recommend checking the correct alignment using a calibrated spirit level from a specialist store.
Yes, the spacers included allow even TVs with a curved back to be hung effortlessly
